How to Set Up IPTV on TVIP Box:
Home / IPTV Setup Guides
TVIP BOX IPTV Setup:

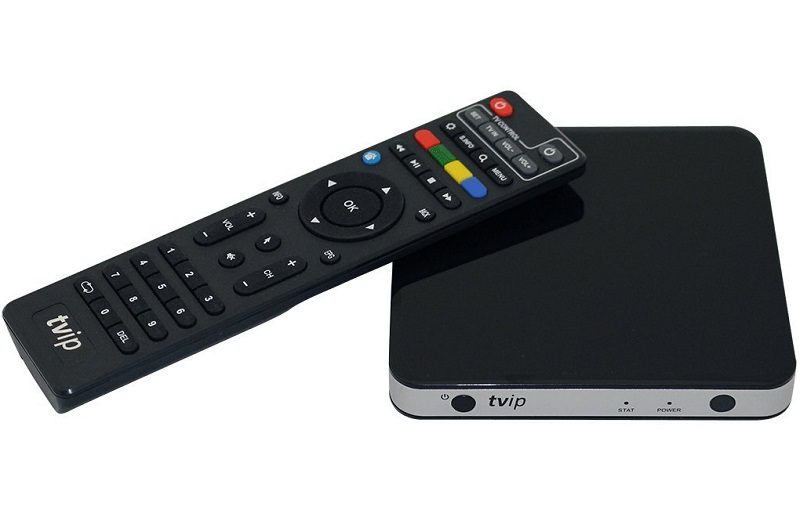

TVIP boxes are highly popular set-top boxes that support IPTV services via MAC-based portals and M3U playlist URLs. With a sleek interface and reliable performance, they are a great alternative to MAG boxes and are compatible with most IPTV providers.
HOW TO SET UP IPTV ON TVIP BOX:
The TVIP box meets all modern requirements for a multimedia device, including support for streaming services, video on demand (VOD), high-quality digital channel playback, and access to OTT content (YouTube, Picasa, online entertainment, weather updates, social networks, and more). The box even includes a web browser.
TVIP is very similar to MAG boxes and partially emulates MAG software.
Select and read the versions below to configure your IPTV subscription:
HOW TO ADD IPTV CHANNELS ON TVIP BOX (NEW VERSION)
If you have a new TVIP box, such as 605 or 615, follow this guide. If you have older versions, such as 410, you will need to update the operating system on your TVIP box or follow the guide for older versions.
Note: you need to send us your device’s MAC address.
You can find the MAC address on the back of your TVIP box. (copy it or screenshot and send to us to activate it)
Step 1:

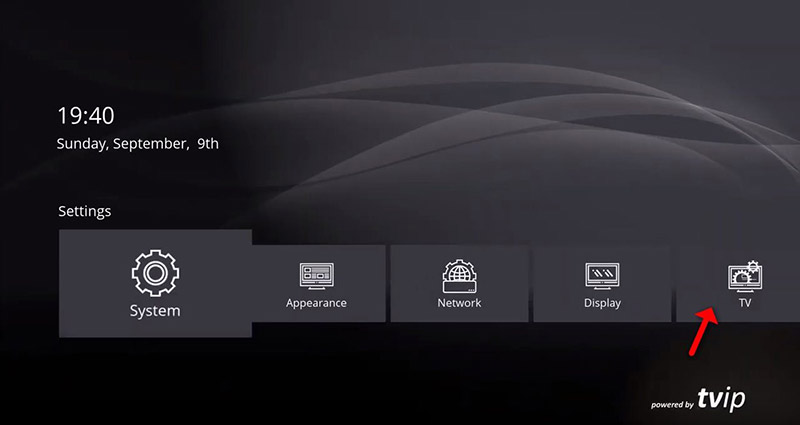

Once you have started your TVIP box and completed the basic settings such as language and time, open the main menu. Scroll down to “Settings” and click on “TV”, as shown in the image below.
Step 2:

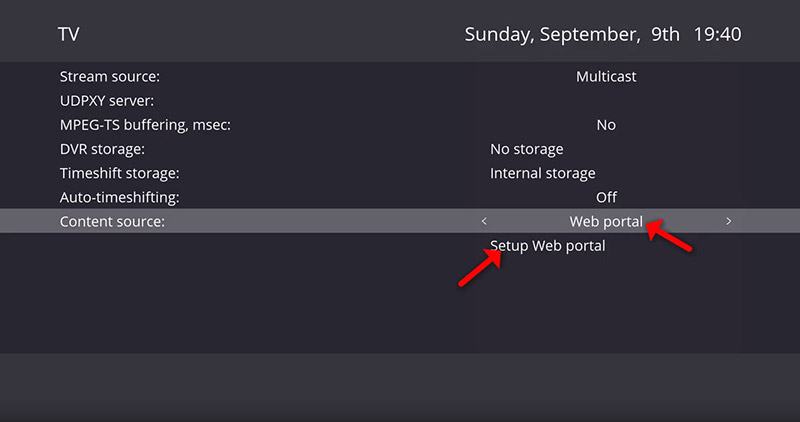

Change “Content source” to “Web portal” and click on “Setup Web portal”.
Step 3:
First, change “API Mode” to “MAG”, then enter the portal url address provided that we sent to you.
enter it in the “Portal URL” field. Click “Apply” and then “Restart”.
🔹 Note: If the “MAG” API is not available in your settings, you can use the “GSTB” API instead.
Note: Please don’t forget to send us your device’s MAC address.
You can find the MAC address on the back of your TVIP box. (copy it or screenshot and send to us to activate it)
Step 4:
After the box restarts, click on “Watch TV” in the main menu.
Wait for the portal to load your playlist. This may take a few minutes.
Step 5:
The channels will load automatically, and you can select the desired channel to start streaming.
How to Add IPTV Channels on TVIP Box Using M3U URL

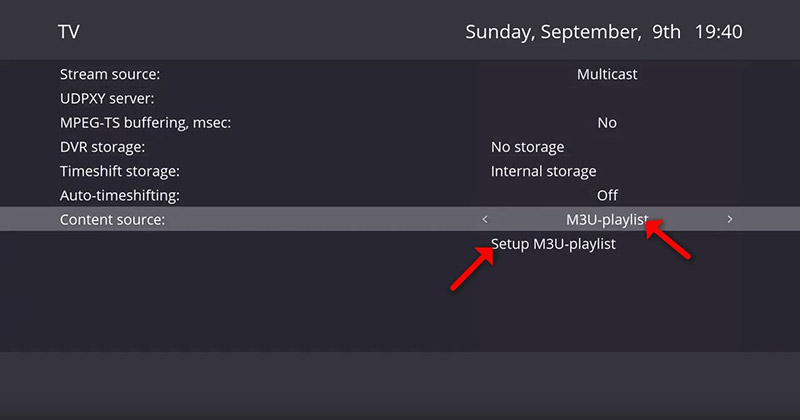

In Step 2 above, change “Content source” to “M3U-playlist” and click on “Setup M3U-playlist”.
Enter the M3U URL provided by your IPTV provider and click “Apply” and “Restart”.
TVIP Box Features
✔ Supports IPTV via portal and M3U playlists
✔ USB and SD card support
✔ Supports streaming protocols such as RTSP, RTP, UDP, IGMP, HTTP
✔ Timeshift function via USB or SD card
✔ TV guide support (EPG: Xmltv and JTV)
✔ Supports Windows sharing (Samba)
✔ Powerful CPU for modern applications
✔ Remote control with learning function
✔ High-quality WiFi (2.4 GHz & 5 GHz available)
HOW TO ADD IPTV CHANNELS TO TVIP BOX (OLD VERSION)
Step 1:

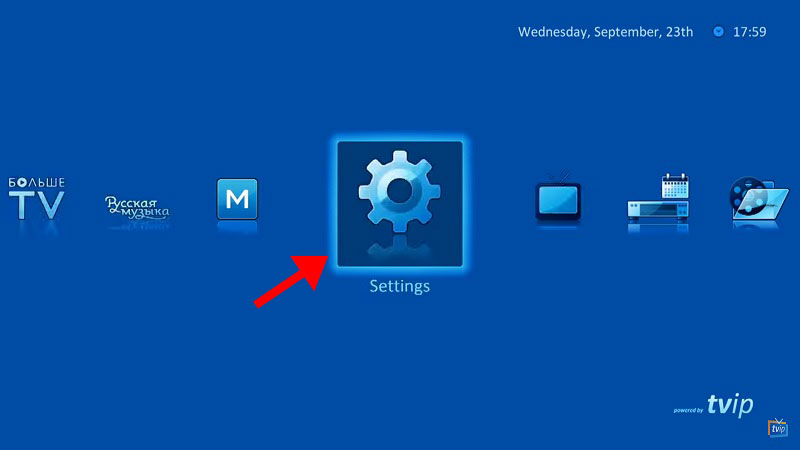

Open the main menu and select “Settings,” as shown in the image below.
Step 2:
In the right menu, select the “TV” icon, then change “Content source” to “Web portal.” Click on “Setup Web portal.”
Step 3:

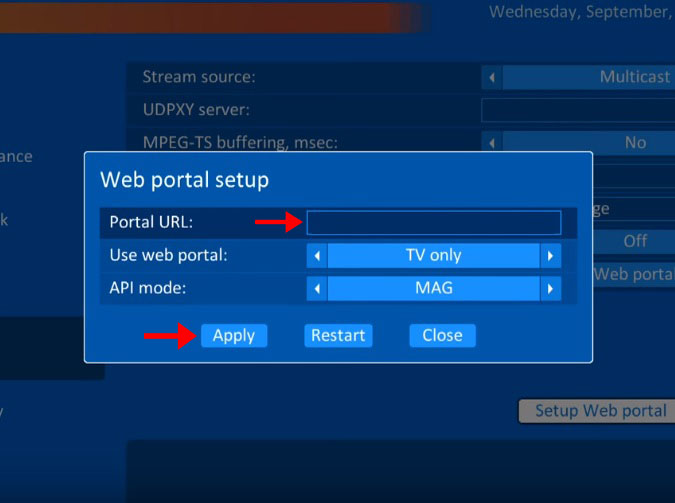

Enter your portal URL in the “Portal URL” field, which you received from your IPTV provider. Then click “Apply.”
Note: you need to send us your device’s MAC address.
You can find the MAC address on the back of your TVIP box. (copy it or screenshot and send to us to activate it)
Step 4:

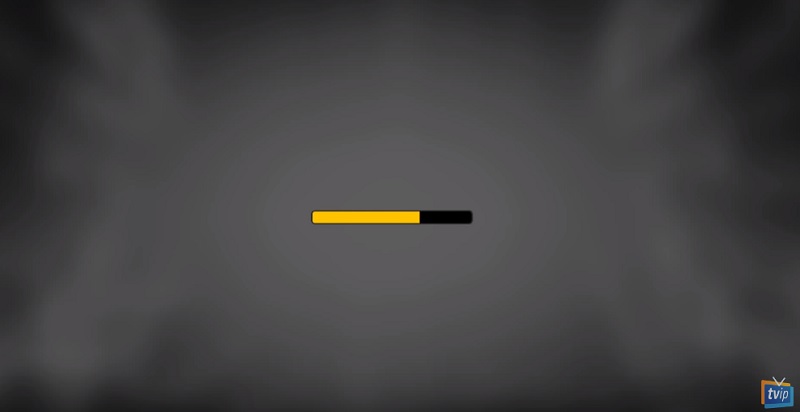

After adding the portal URL, wait for the portal to load your playlist. This may take a few minutes.
Step 5:
The channels will appear automatically, and you can select your desired channel to start streaming.
TVIP BOX FEATURES
Support for IPTV via portal and M3U playlists
USB and SD card support
Support for streaming protocols such as RTSP, RTP, UDP, IGMP, HTTP
Timeshift function via USB or SD card
TV guide support (EPG: Xmltv and JTV)
Support for Windows sharing (Samba)
Powerful CPU for modern apps
Remote control with learning function
High-quality WiFi (2.4 GHz and 5 GHz available)
Why Choose TVIP Box?
TVIP boxes are a great choice for IPTV because they’re easy to use, flexible, and highly reliable.
Supports both M3U & Portal (MAC) setup
Compatible with Linux & Android
User-friendly interface, similar to MAG boxes
Supports EPG, Catch-Up TV, and 4K UHD (on select models)
Regular firmware updates for better performance
Perfect for anyone who wants smooth, high-quality IPTV streaming with minimal setup.
Tips & Troubleshooting
- “Loading portal failed”
→ Make sure your internet connection is active and the portal URL is correctly entered. - No channels showing?
→ Confirm that your subscription is active and supports MAC or M3U access. or try restarting or unplugging the cable electricity of the device and router WIFI for a moment. - Device freezing or buffering?
→ Reboot the router and box. If issue persists, contact us. - Wrong time or EPG issues?
→ Go to Settings > System > Time and Language and adjust the time zone accordingly.
Watch on any device
If you want to watch on another device?
Click here to set up IPTV on another device.
